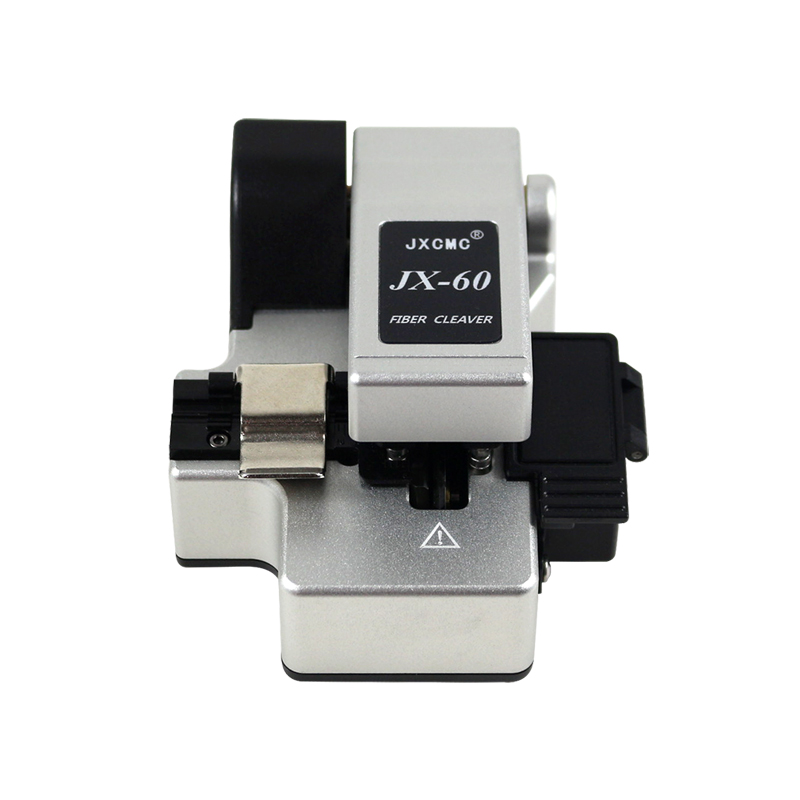

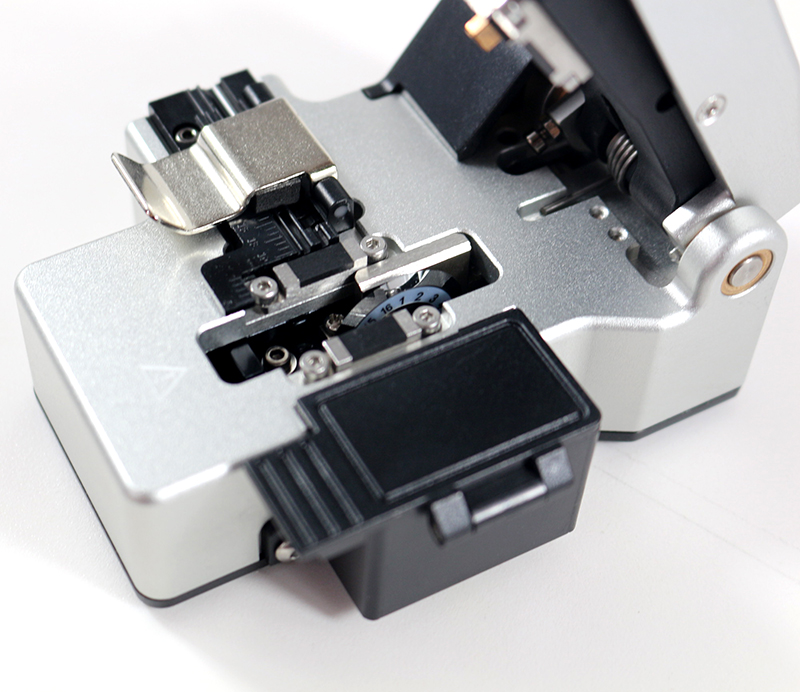

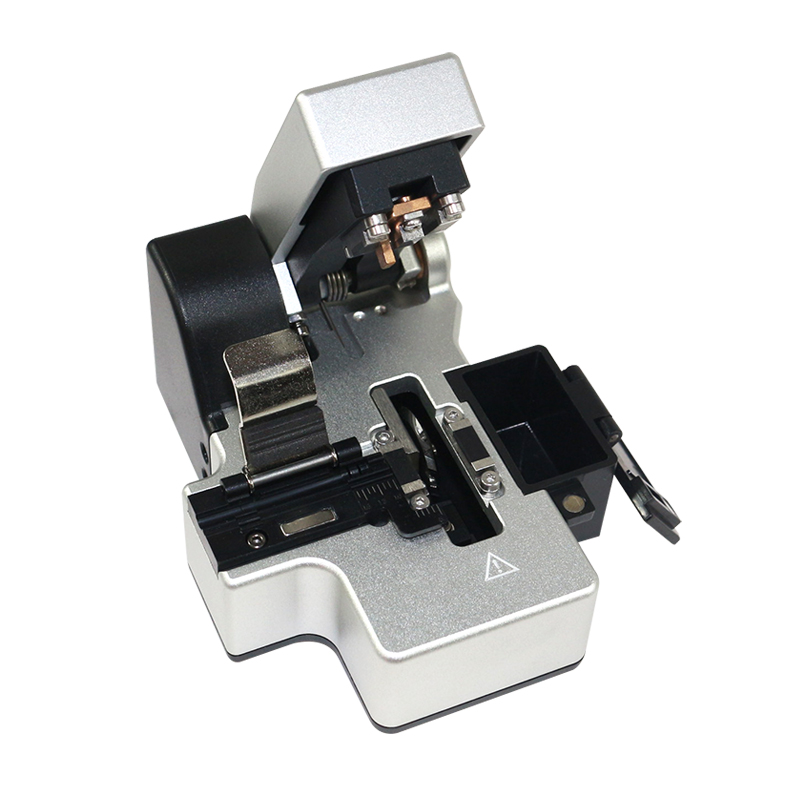

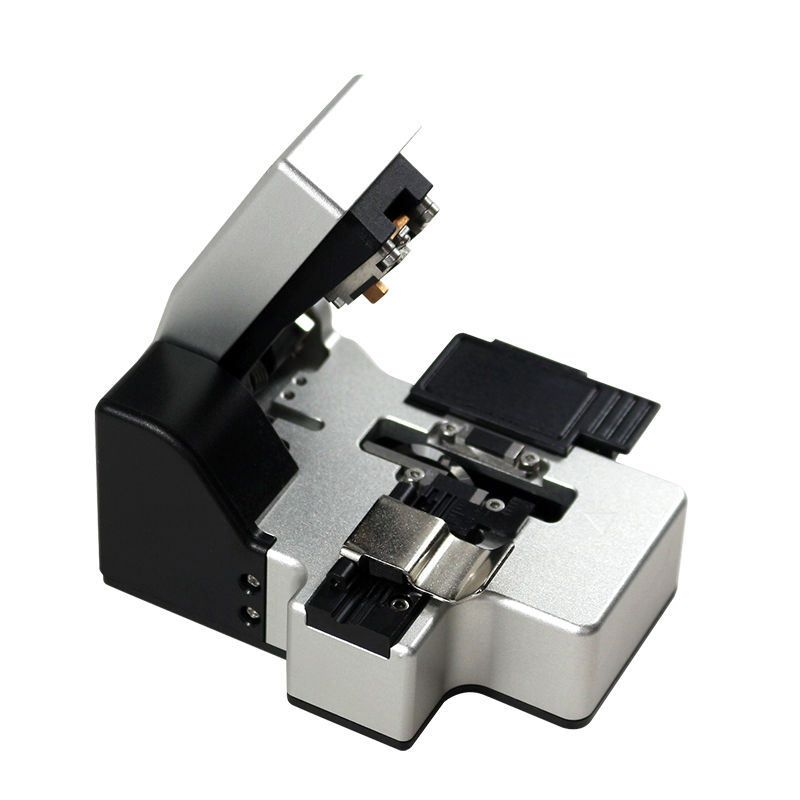

JX-60 one-step automatic optical fiber cutter
Specifications:
| Applicable optical fiber |
Single-core silica optical fiber |
|
Applicable optical fiber coating-layer diameter |
φ0.25, φ0.9, φ2.0, φ3.0, 3×2 |
|
Applicable bare fiber diameter |
125μm |
|
Max. cleaved fiber length |
5~16mm (φ0.25) ,10~ 16 mm(φ0.9) |
|
Dimensions |
97mm (W) ×88mm (D) × 51mm (H) |
|
Weight |
360g |
|
Applicable cleaving angle |
≤ 0.7 ° |
|
Blade service life |
60,000 times |
